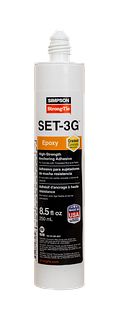

Simpson Strong-Tie SET-3G™ High-Strength Epoxy Adhesive

Simpson Strong-Tie

$35.99
Unit price per

Select

Quantity

+ -

SET-3G is an epoxy-based anchoring adhesive with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.

Key Features

Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas.
Design flexibility — improved sustained load performance at elevated temperature.
Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C).
Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
Approved for installation with multiple vacuum-drill bit systems without further hole cleaning. See Code Report (ESR-4057) and Engineering Letter for approved systems.
Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring.
With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas.
Low-odor formulation.
Manufactured in the USA using global materials.
During the installation of SET-3G, when the correct installation processes are followed, there is no performance difference between water-saturated concrete, water-filled holes, or submerged concrete.
For use with potable water.

Mix Ratio/Type	1:1 epoxy
Mixed Color	Gray
Base Materials	Concrete and masonry — cracked and uncracked
Base Material Conditions	Dry, water-saturated, water-filled and submerged
Anchor Type	Threaded rod or rebar
Substrate Installation Temperature	40°F (4°C) to 100°F (38°C)
In-Service Temperature Range	-40°F (-40°C) to 176°F (80°C)
Storage Temperature	45°F (7°C) and 90°F (32°C)
Shelf Life	24 months
Volatile Organic Compound (VOC)	2 g/L
