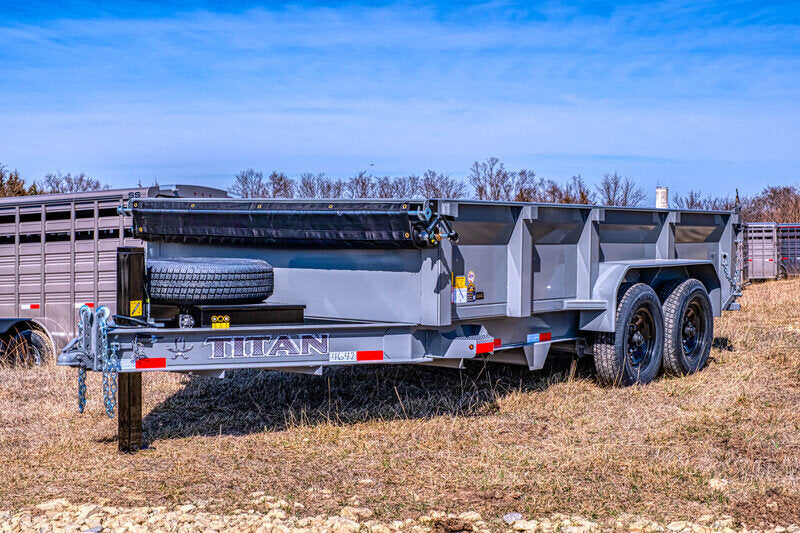

Titan 14' Dump Trailer Bumper Hitch

Titan

Standard Features
7000# Dexter Torsion EZ Lube Axles
8 Bolt Hubs
13# 8" I-Beam Frame Rails
3" Channel Crossmembers on 12" Centers
24" Tall Formed 10 ga. Sides
10 ga. Floor
14 Gauge Fenders
Electric Brakes on all 4 Wheels
Titan Proprietary Scissor Lift – 5"x20" Cylinder on 14'
Titan Proprietary Scissor Lift – 6"x20" Cylinder on 16'
45 Degree Approximate Dump Angle
Split Barn Door Back Gate
2 - 5' Ramps
Spare Tire
4 - Heavy Duty D-Rings - 1 in Each Corner
Stillwell Hydraulic Jack
Roll-Over Tarp, Rod and Mounting
Power Up/Power Down/Gravity Down
Heavy Duty Reinforced Sides and Back Gates
Titan Proprietary Integrated Pump Box
Heavy Duty Corner Steps in Front
Stake Pockets on Uprights
Rear Gate Slam-Latch Holdbacks
2-5/16” Adjustable Bumper Hitch Coupler
12V Deep Cycle Battery
Remote Cord has Buttons Accessable from Outside Pump Box
110V Charging Plug
Breakaway Battery Box with Charger and Tester
Molded 7 Prong Plug with Heavy Cord
Sealed Beam Recessed L.E.D. Lights
Chain Tray Storage

Notes
Lift Capacity Rated at Axle Rating
No Deductions for Standard Options
Barn Doors: Height at Deck = 25", Height at Side = 49"; Spreader Gate: Height at Deck = 27", Height at Side = 49"
Any trailer of a different size will need an approval and quote from the factory. Standard Features subject to change, Weights may vary according to options

Axles (Non-Standard Axles may increase lead time)
Triple 7000# Axles - 16' Dump Trailer Only (Lift Capacity is 16,000 lbs.)
8K EZ Lube Axles with Standard Duty Brakes, 8 Bolt Hubs & 14 Ply Tires (Lift Capacity is 16,000 lbs.)
Surge Brakes (Bumper Hitch Only)(drum brake axles)

Heavy Duty Options
7 ga. HD Package (7 ga. Floor, 7 ga. 24" Tall Sides) (per trailer foot)
7 ga. Steel Floor (per trailer foot)
1/4"Steel Floor (per trailer foot)
Heavy Duty Ramps

Side & Gate Options
2-Way Spreader Gate on 2' Sides
4' Solid Sides, 10 ga. (per trailer foot)
2-Way Spreader Gate on 4' Sides
2" X 3/8" Steel Rub Rails over Stake Pockets
Top Rail Boards and Bracket Kit
20" Solid, Prefabricated Side Extensions
