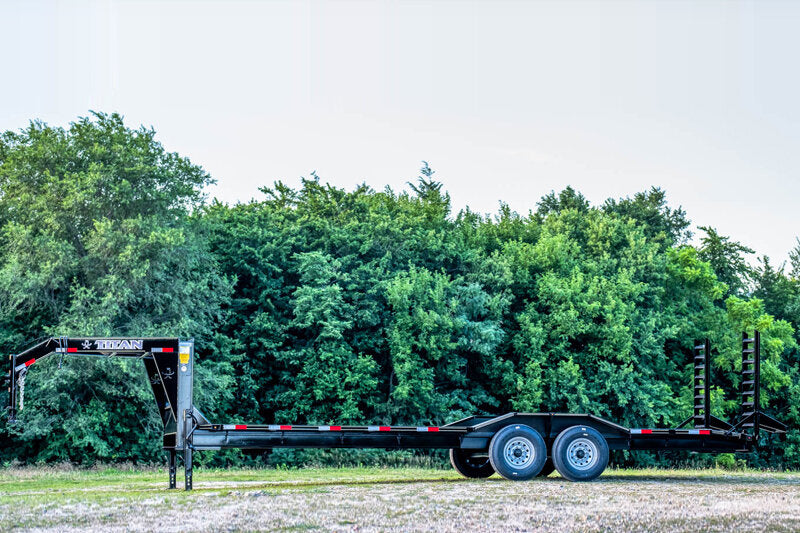

Titan 29' Gooseneck Trailer

Standard Features
Double Main Frame Constructed w/5” Channel
3” Channel Crossmembers on 16” Centers
Torsion EZ Lube Axles
Electric Brakes on all 4 Wheels
8 Bolt Hubs
Stake Pockets Welded to Rubrail
Spare Tire
2-5/16” Adjustable Bumper Hitch Coupler
Coated Inner frame under Floor
Treated 2”x 8” Floor Boards
2 - 6’ long x 16" Wide Ramps with Drop Legs
14 ga. Diamond Plate Fenders
Spring Loaded Dual Pin Jack
Breakaway Battery Box with Charger and Tester
Sealed Beam Recessed L.E.D. Lights
7-Prong Cold Weather Cord
Trailers 24' and Longer get 7" Channel on Bottom Frame

Notes
Trailers 29' and Under Ordered with a Gooseneck will come with 8" Channel
Trailers 30' and Over Ordered with a Gooseneck will come with 10" Channel
ANY TRAILER OF A DIFFERENT SIZE WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION
WEIGHTS MAY VARY ACCORDING TO OPTIONS

Optional Features
Axles (Non-Standard Axles may increase lead time)
7000# Torsion EZ Lube 8 Bolt Hubs w/ 16” Radials includes 7" Channel Iron Tongue
Triple 7000# Torsion EZ Lube
8000# Torsion EZ Lube Axles w/ 14 Ply Radial Tires (81" wide between fenders)

Flooring Options
Steel Floor(Includes 12” Cross members)
Rubber Composite Flooring (Includes 12" Cross members)
Blackwood Rubber Infused Lumber - Full Deck Width (Decks Over 20' Long has Split Floor)
Blackwood Rubber Infused Lumber- 3 Outside Boards Each Side (Decks Over 20' Long has Split Floor)

Miscellaneous Options
Tubing Rail - Length of Trailer
20" Tall Solid Sides - 3 Side Only (Both Sides and Front)
Double Dual Pin Jacks
Chain Box with Lid Between Jacks - Available only with Double Jacks
Receiver Hitch
4" Torsion Pipe on Utility Trailer - Runs Lengthwise
4" Torque Tube - Runs Crosswise
Flat Iron on Outside of Stake Pockets
Welded Heavy Duty D-Ring (each)

Ramp & Tail Options
2’ Stationary Dovetail with 2 - 6' Ramps (Stand Up or Slide-in)
2' Stationary Dovetail with 2 - 5' Ramps 20" Wide with Stationary Load Supports
2' Stationary Dovetail with 2 - 6' Ramps 20" Wide with Stationary Load Supports
2 - 6' Tall 36" Wide Ramps - Stand Up Only
5' Landscape Gate (In Lieu of Ramps)
6' Landscape Gate (In Lieu of Ramps)
Spring Loaded Ramps (Pair)
Heavy Duty Ramps

Stem & Frame Options
Gooseneck made with 8" Channel Iron (Ruffneck)
Gooseneck made with 10" Channel Iron (Ruffneck)
Gooseneck made with I-Beam
Upgrade Frame to 7" Channel on Trailers Under 24' Long

Fender Options
Removable Fenders (Each)
Drive Over Fenders
Raised Expanded Metal on Drive Over Fender Inclines Only
11 ga. Diamond Plate Fenders
